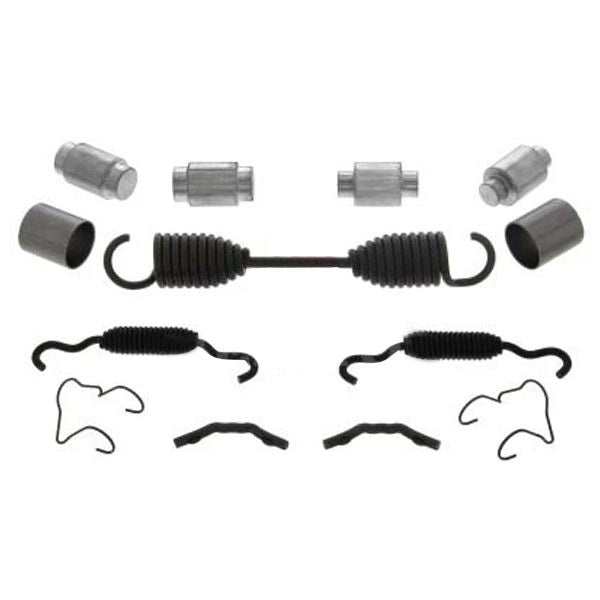

Descripción
brake type:q & q-plus
application:drive axle, trailer axle
brake diameter:16.50 in.
fmsi:for q series; 5" 4524b ; 6" 4514g; 7" 4515e; 8.63" 4551g; 10" 4514g/4549c; for q+ series; 7" 4707; 8" 4718; 8.63" 4711
brake width:5.00 in. & 6.00 in. & 7.00 in. & 8.00 in. & 8.625 in. & 10.00 in.
bushing type:no anchor pin bushing
oe mfg.:meritor
kit type:value
vmrs code:013-017-008
notes:same as mkt 4515qmb except includes heavy duty return spring. services all q brake measurement, including fruehauf, except those on front steering axles. services 1 brake. also available bagged as part number mkt4515qmbhd-n.
parent description:q and q+ double anchor pin quick change brake shoeInternational Todos 1980 - 2020, Freightliner Todos 1980 - 2020, Peterbilt Todos 1980 - 2020, Volvo Todos 1980 - 2020, Kenworth Todos 1980 - 2020, Blue Bird Todos 1980 - 2020, Mack Todos 1980 - 2020
