meets flame resistance acceptance designation "msha 2g"
recommended for: high pressure hydraulics with low flexure/non-severe
applications requiring the sae 100r2 or en853 2sn specification for
dimensions and performance.

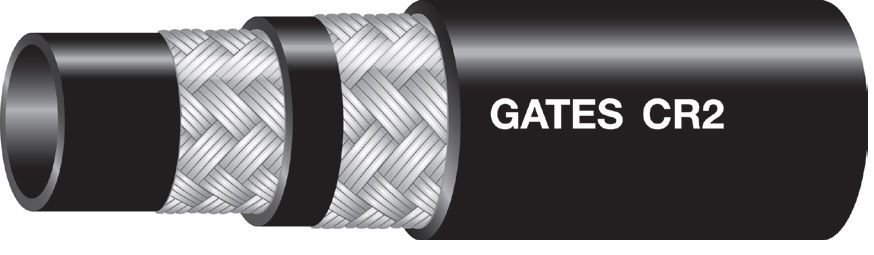

tube: black, oil resistant, synthetic rubber (nitrile-type c).
reinforcement: two braid of high-tensile steel wire.
cover: black, abrasion resistant, synthetic rubber (modified sbr).
temperature range: -40ºf to +212ºf (-40ºc to +100ºc)
coupling recommendation: megacrimp® (-4 to -16)
